Yo Dawg SAO - introducing SAOAO

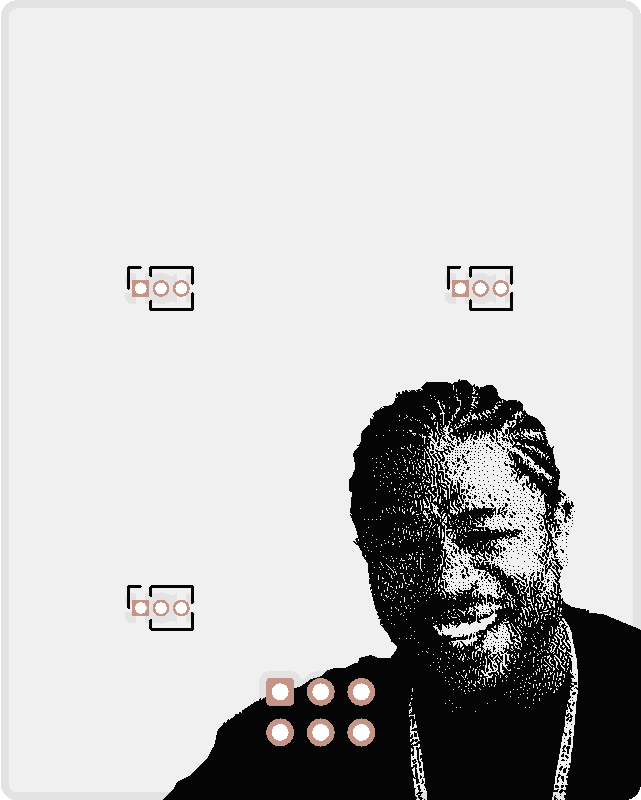

I heard you like badges for your badges, so I made badges for your badges for your badges. YoDawg

intro

Memes, am I right? sometimes ideas feel to small for a simple add-on. But not here, here a simple add-on for a simple add-on has to be 19mm x 19mm at most and feature a 1.27mm 3pin header. No added pressure of adding I2C. Just vibes.

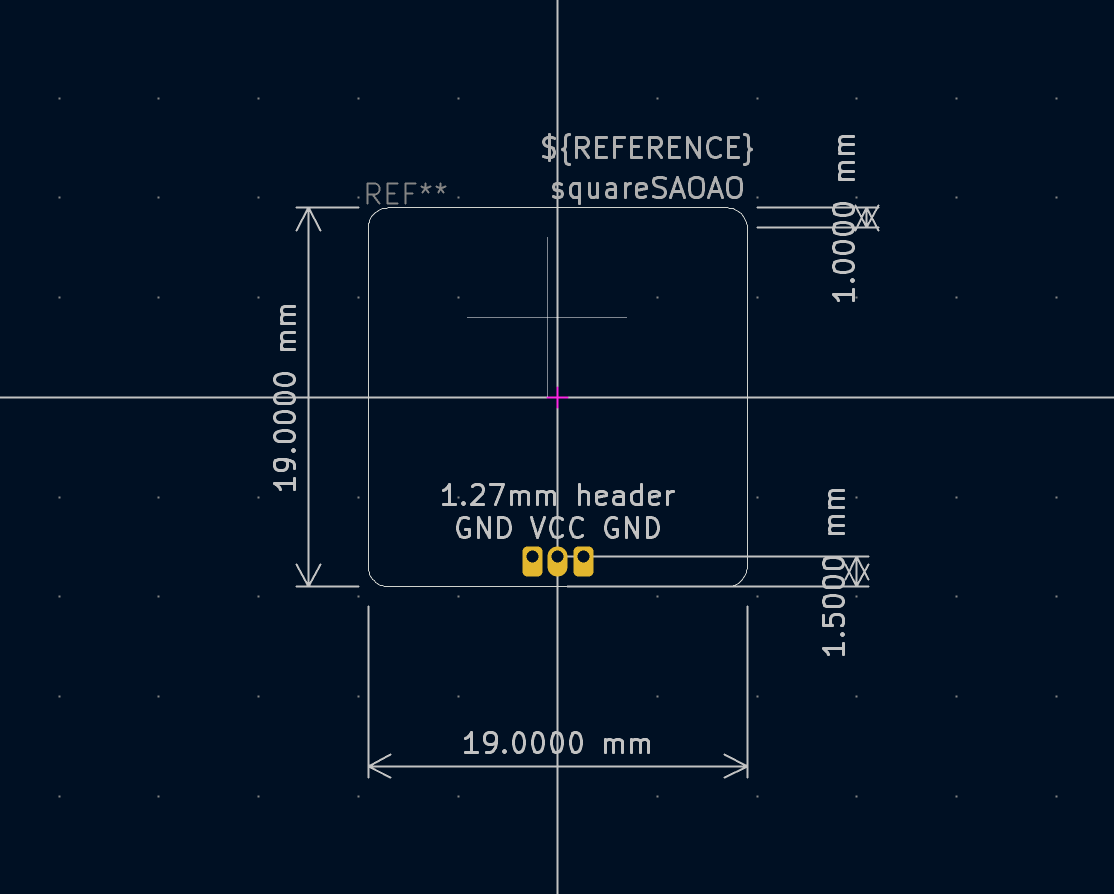

Pinout

the idea

We don't need that many headers to make some LEDs glow and 6 pins on the SAO can already be so confusing when you create your first blinking SAO, especially when everybody mirrors their images to help you (get you confused).

SAOAOs don't have that problem - its mirroring-protected pinout makes it a breeze to route. Ground is on the outside pins, VCC is in the middle. Don't get confused by the SAO adapter though, someone made a mistake with the silkscreen, because + - + looked cute and distracting.

the SAOAOs


IRON MAN	Hack-A-Day	xHain

Cold white, flickering LED on the back for the eyes	warm white flickering LED for hacky effect	RGB LED behind the tree, just like xHain
Cluster	-	-

self blinking LEDs that go out of sync, faking a cluster computer
